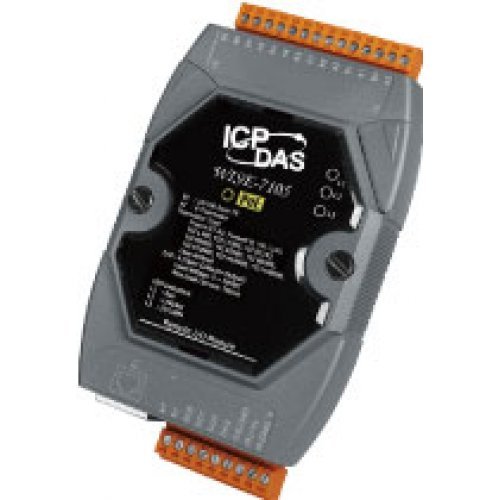

Модуль WISE-7160 6-channel Power Relay Output and 6-channel Isolation Digital Input WISE PoE Controller (RoHS)

Дискретный ввод
Количество каналов -- 6
Тип входа -- Wet Contact (Sink, Source)
Уровень логической '1' -- +10 VDC ~ +50 VDC
Уровень логического '0' -- +4 VDC Max
Входное сопротивление -- 10 k
Защита от перенапряжений -- +70 VDC
Дискретный ввод, счетчики
Мах. значение -- 65535 (16 bits)
Max. входная частота -- 50 Hz
Mин. длительность импульса -- 10 ms
Реле
Количество каналов -- 6
Тип выхода -- Power Relay, Form A (SPST N.O.)
Operating Voltage Range -- 250 VAC/30 VDC
Max. ток нагрузки -- 5.0 A/channel at 25 °C
Время срабатывания -- 6 ms (Typical)
Время отсоединения -- 3 ms (Typical)
Электрический ресурс срабатываний ( VDE ) -- 5A 250 VAC 30,000 ops (10 ops/minute) at 75 °C ? 5A 30 VDC 70,000 ops (10 ops/minute) at 75 °C
Электрический ресурс срабатываний ( UL ) -- 5A 250 VAC/30 VDC 6,000 ops. ? 3A 250 VAC/30 VDC 10,000 ops.
Механический ресурс срабатываний -- 20,000,000 ops. at no load (300 ops./minute)
System
Процессор -- 16-bit CPU
SRAM -- 512 KB
Flash Memory -- 512 KB
EEPROM -- 16 KB
Сторожевой таймер -- Да
Интерфейсы
PoE Ethernet Port -- 10/100 Base-TX (With Link, Activity LED Indicator) and automatic MDI/MDI-X
2 Way Isolation
I/O -- 3000 Vrms
EMS Protection
ESD (IEC 61000-4-2) -- 4 kV Contact for each terminal
EFT (IEC 61000-4-4) -- +/-2 kV for Power
LED Indicators
PoE -- PoE On
L1 -- System Running
L2 -- Ethernet Link/Act
L3 -- Ethernet 10/100M Speed
Power Requirements
Reserve Polarity Protection -- Да
Powered from terminal block -- Yes, 12 ~ 48 VDC
Powered from PoE -- Yes, IEEE 802.3af, Class1
Consumption -- 4.8 W
Mechanical
Dimensions (W x H x D) -- 72 mm x 123 mm x 35 mm
Installation -- DIN-Rail or Wall mounting
Environment
Operating Temperature -- -25 °C ~ +75 °C
Storage Temperature -- -30 °C ~ +80 °C
Humidity -- 10 ~ 90% RH, non-condensing
Functions
Rule Configuration Website -- Access Web server on WISE controllers to edit and upload logic rules through web browser.
36 IF-THEN-ELSE Logic Rules -- 3 IF conditions with AND or OR operators 3 THEN actions and 3 ELSE actions
48 Internal Registers -- Hold temporary variables and read/write data via Modbus/TCP address.
12 Timers -- Delay / Timing functions
12 Emails -- Send Email messages to pre-set Email receivers.
12 CGI Commands -- Send pre-set CGI commands.
12 Recipes -- Set up THEN/ELSE action groups.
8 P2P remote modules -- Set up the connection information for the remote WISE modules.
Modbus/TCP Protocol -- Real time control and monitoring I/O channels and system status of controllers via SCADA software.
IF Conditions
DI Channel -- ON, OFF, ON to OFF, OFF to ON, Change
Internal Register -- =, , >=, , =, , =, <=(value), Change
Timer -- Timeout, Not Timeout
P2P -- DI, AI, DI counter, DO counter, IR
Rule Status -- Enable, Disable
THEN / ELSE Actions
DO Channel -- ON, OFF, Pulse Output
Internal Register -- Change the value
DI Counter -- Reset
DO Counter -- Reset
Timer -- Start, Stop
Email -- Send
CGI Commands -- Send
Recipe -- Execute
P2P -- DO(On/Off), AO, IR
Rule Status -- Enable, Disable
