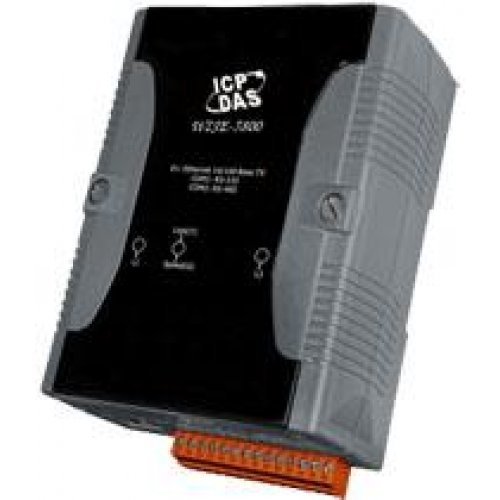

Модуль WISE-5800 User-defined I/O & Data Logger Module

System
Процессор -- 16-bit CPU
SRAM -- 768 KB
Flash Memory -- 512 KB
EEPROM -- 16 KB
Сторожевой таймер -- Да (0.8 секунд)
NVRAM -- 31 Bytes
Часы реального времени -- RTC Provide seconds, minutes, hours, date of week/month- month and year
microSD -- Yes, can support 1 or 2 GB microSD
Интерфейсы
PoE Ethernet Port -- RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
COM 1 -- RS-232 (Reserved, Unsupported by WISE firmware)
COM 2 -- RS-485 (D2+, D2-), self-tuner ASIC inside, non-isolated, Speed : 115200 bps max.
LED Indicators
System LED -- Yes (Red)
LED Display -- -
Ethernet Link LED -- Yes (Green : Ethernet link detected, Flashing Green : Ethernet packet received)
Hardware Expansion
I/O Expansion Bus -- Да
Power Requirements
Reserve Polarity Protection -- Да
Consumption -- 2.0 W
Frame Ground -- Yes (for ESD Protection)
Input Range -- +12 ~ +48 VDC
Redundant Power Input -- Да
Mechanical
Dimensions (W x H x D) -- 91 mm x 123 mm x 52 mm
Installation -- DIN-Rail
Environment
Operating Temperature -- -25 °C ~ +75 °C
Storage Temperature -- -30 °C ~ +80 °C
Humidity -- 10 ~ 90% RH, non-condensing
Functions
Rule Configuration Website -- Access Web server on WISE controllers to edit and upload logic rules through web browser.
36 IF-THEN-ELSE Logic Rules -- 3 IF conditions with AND or OR operators 3 THEN actions and 3 ELSE actions
48 Internal Registers -- Hold temporary variables and read/write data via Modbus/TCP address.
12 Timers -- Delay / Timing functions
12 Schedules -- Setup prescheduled routine tasks.
12 Emails -- Send Email messages to pre-set Email receivers.
12 CGI Commands -- Send pre-set CGI commands.
12 Recipes -- Set up THEN/ELSE action groups.
Modbus/TCP Protocol -- Real time control and monitoring I/O channels and system status of controllers via SCADA software.
Data Logger -- Set up the Data Logger configuration, include the data record format, and data file sending operation.
IF Conditions
DI Channel -- ON, OFF, ON to OFF, OFF to ON, Change
AI Channel -- =, , >=, , >=, , =, <=(value), Change
Timer -- Timeout, Not Timeout
Schedule -- In Range, Out of Range
Rule Status -- Enable, Disable
THEN / ELSE Actions
DO Channel -- ON, OFF, Pulse Output
AO Channel -- Change the value
Internal Register -- Change the value
DI Counter -- Reset
Timer -- Start, Stop
Schedule -- Start, Stop
Email -- Send
CGI Commands -- Send
Recipe -- Execute
Rule Status -- Enable, Disable
Data Logger -- Start, Stop, One-Time Log
